AWS RDS UK/Eur/ME Windows PC Setup

AWS RDS UK/Eur/ME Windows PC Setup

PC GATEWAY SETUP

A gateway connection is used where the clinic does not have a static IP that can be used to restrict access in the firewall. It will also be used when if a user is not connecting from the clinic, i.e. at home or on the road. Note: Password cannot be saved with a gateway setup
  1. Enter Logon Settings on General tab as advised by VetlinkPRO
    1. Computer / IP: xxx-uk-rds-2a.cloud.p2plimited.com
    2. Username: e.g. cloud\xxxuser1
    3. Password: Will be sent in seperate email if required
  2. Click Advanced tab the click Settings button
  3. Configure Connection Settings
    1. Tick Use these RD Gateway server Settings
    2. Server Name: uk.cloud.p2plimited.com
    3. Tick Use my RD Gateway Credentials for the remote computer
  4. Go to Experience Tab
    1. Change Connection Speed to Modem (56 kbps)
    2. Leave Performance tick boxes unchecked
    3. Persistent Bitmap Caching and Reconnect if Connection dropped should be ticked.
  5. Go back to General tab and Save the connection.
  6. Connect and enter password.



PC DIRECT REMOTE ACCESS

If the clinic has a static IP direct remote access connection can be restricted to just those from the clinic IP address. With Direct Remote Access connections the password can be saved.
  1. Make sure clinic has static IP and remote access port is open in AWS firewall. Port access should be restricted by IP.

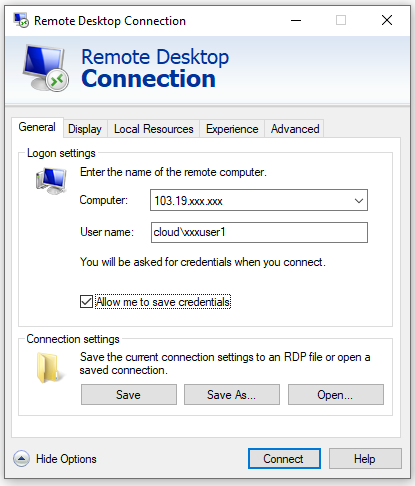

  2. Enter Logon Setting on General tab as configured by network engineer
    1. Computer / IP: IP address as per royal TS
    2. Username: e.g. cloud\xxxuser1
    3. Tick Allow Me to Save Credentials

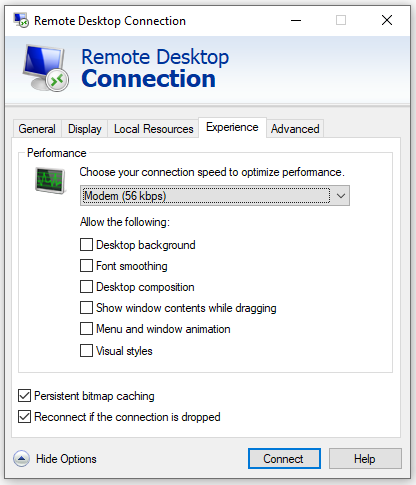

  3. Go to Experience Tab.
    1. Change Connection Speed to Modem (56 kbps)
    2. Leave Performance tick boxes unchecked
    3. Persistent Bitmap Caching and Reconnect if Connection dropped should be ticked.
  4. Save the connection.
  5. Connect using password set by network admin
